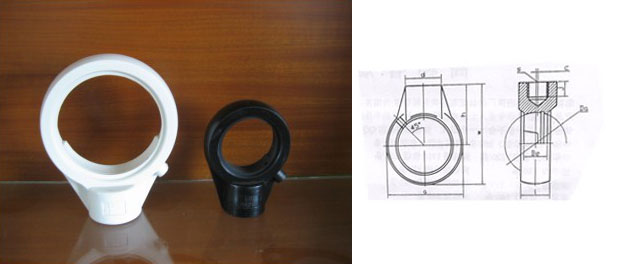

| 轴承座型号 | 基本尺寸 | 重量 | 适用轴承型号 | |||||||||
| Dimensions | ||||||||||||
| Housing No. | Da | Be | a | d | w | h | c | j | s | l | Weight | Bearing No |
| (kg) | ||||||||||||
| HA201-HA204 | 47 | 17 | 64 | 40 | 96 | 64 | 19.1 | PF3/4 | 21 | 0.5 | UC201- UC204 | |
| HA205 | 52 | 17 | 78 | 40 | 103 | 64 | 19.1 | PF3/4 | 24 | 0.5 | UC205 | |
| HA206 | 62 | 19 | 78 | 40 | 103 | 64 | 19.1 | PF3/4 | 28 | 0.5 | UC206 | |
| HA207 | 72 | 20 | 92 | 40 | 116 | 70 | 19.1 | PF3/4 | 30 | 0.6 | UC207 | |
| HA208 | 80 | 210 | 96 | 40 | 121 | 73 | 2 | 19.1 | PF3/4 | 33 | 0.5 | UC208 |
| HA209 | 85 | 22 | 108 | 48 | 136 | 82 | 5 | 21 | PF1 | 35 | 1.4 | UC209 |
| HA210 | 90 | 23 | 118 | 48 | 142 | 83 | 5 | 21 | PF1 | 37 | 1.8 | UC210 |
| HA211 | 100 | 24 | 126 | 60 | 158 | 95 | 7 | 25 | PF1-1/4 | 38 | 1.82 | UC211 |
| HA212 | 110 | 26 | 142 | 60 | 173 | 102 | 9 | 28 | PF1-1/4 | 42 | 2.87 | UC212 |
| HA213 | 120 | 27 | 166 | 70 | 200 | 117 | 9.5 | 32 | PF1-1/4 | 44 | 4.75 | UC213 |
