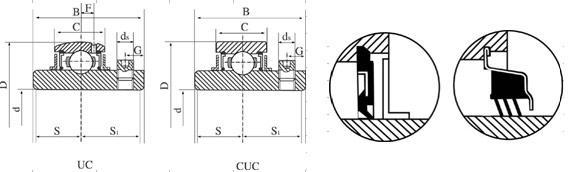

| Bearing No. | Boundary Dimensions（mm inch） | Basic Load Rating(N) | Weight | ||||||||
| 轴承型号 | 外形尺寸 | 额定负荷 | 重量 | ||||||||
| Dynamic | Static | Kg(pc) | |||||||||
| d | D | B | C | S | S1 | ds | G | Cr | Cor | ||
| UC201S | 12 | 40 | 22 | 14 | 6 | 16 | M6×1 | 4.5 | 7360 | 4480 | 0.12 |
| RB201-8S | 1/2 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.63 | 1/4-28UNF | 0.177 | 0.12 | ||
| 202S | 15 | 0.11 | |||||||||
| 202-10S | 5/8 | 0.11 | |||||||||
| 203S | 17 | 0.11 | |||||||||
| 203-11S | 11/16 | 0.11 | |||||||||
| UC204-12 | 3/4 | 47 | 31 | 16 | 12.7 | 18.3 | M6×1 | 4.7 | 9880 | 6650 | 0.18 |
| RB204 | 20 | 1.54 | 1.2205 | 0.6299 | 0.5 | 0.7205 | 1/4-28UNF | 0.185 | 0.17 | ||
| UC205-14 | 7/8 | 52 | 34.1 | 17 | 14.3 | 19.8 | M6×1 | 5.5 | 10800 | 7880 | 0.23 |
| RB205-16 | 15/16 | 2.0472 | 1.3425 | 0.6693 | 0.563 | 0.7795 | 1/4-28UNF | 0.2165 | 0.22 | ||
| 205 | 25 | 0.21 | |||||||||
| 205-16 | 1 | 0.2 | |||||||||
| UC206-18 | 1-1/8 | 62 | 38.1 | 19 | 15.9 | 22.9 | M6×1 | 5.5 | 15000 | 11200 | 0.38 |
| RB206 | 30 | 2.4409 | 1.5 | 0.748 | 0.626 | 0.874 | 1/4-28UNF | 0.2165 | 0.36 | ||
| 206-19 | 1-3/16 | 0.35 | |||||||||
| 206-20 | 1- 1/4 | 0.34 | |||||||||
| UC207-20 | 1-1/4 | 72 | 42 | 20 | 17.5 | 25.4 | M6×1 | 6.5 | 19800 | 15200 | 0.61 |
| RB207-21 | 1-5/16 | 2.8346 | 1.689 | 0.7874 | 0.689 | 1.000 | 1/4-28UNF | 0.2559 | 0.59 | ||
| 207-22 | 1-3/8 | 0.56 | |||||||||
| 207 | 35 | 0.54 | |||||||||
| 207-23 | 1-7/16 | 0.52 | |||||||||
| UC208-24 | 1-1/2 | 80 | 49.2 | 21 | 19 | 30.2 | M6×1 | 8 | 22800 | 18200 | 0.68 |
| RB208-25 | 1-9/16 | 3.1496 | 1.937 | 0.8268 | 0.748 | 1.189 | 1/4-28UNF | 0.315 | 0.65 | ||
| 208 | 40 | 0.64 | |||||||||
| UC209-26 | 1-5/8 | 85 | 49.2 | 22 | 19 | 30.2 | M6×1 | 8 | 24500 | 20800 | 0.78 |
| RB209-27 | 1-11/16 | 3.3465 | 1.937 | 0.8661 | 0.748 | 1.189 | 1/4-28UNF | 0.315 | 0.74 | ||
| 209-28 | 1-3/4 | 0.7 | |||||||||
| 209 | 45 | 0.68 | |||||||||
| UC210-30 | 1-7/8 | 90 | 51.6 | 23 | 19 | 32.6 | M8×1 | 9 | 27000 | 23200 | 0.87 |
| RB210-31 | 1-15/16 | 3.5433 | 2.0315 | 0.9055 | 0.748 | 1.2835 | 5/16-28UNF | 0.3543 | 0.82 | ||
| 210 | 50 | 0.8 | |||||||||
| 210-32 | 2 | 0.78 | |||||||||
| UC211-32 | 2 | 100 | 55.6 | 25 | 22.2 | 33.4 | M8×1 | 9 | 33500 | 29200 | 1.27 |
| RB211-34 | 2-1/8 | 3.937 | 2.189 | 0.9843 | 0.874 | 1.315 | 5/16-28UNF | 0.3543 | 1.17 | ||
| 211 | 55 | 1.12 | |||||||||
| 211-35 | 2-3/16 | 1.1 | |||||||||
| UC212-36 | 2-1/4 | 110 | 65.1 | 27 | 25.4 | 39.7 | M8×1 5/16-28UNF | 10.5 | 36800 | 32800 | 1.67 |
| RB212 | 60 | 4.3307 | 2.563 | 1.063 | 1.000 | 1.563 | 0.4134 | 1.53 | |||
| RB212-38 | 2-3/8 | 1.53 | |||||||||
| RB212-39 | 2-7/16 | 1.45 | |||||||||
| UC213-40 | 2-1/2 | 120 | 65.1 | 28 | 25.4 | 39.7 | M8×1 5/16-28UNF | 12 | 44000 | 40000 | 1.94 |
| UC213 | 65 | 4.7244 | 2.563 | 1.1024 | 1.000 | 1.563 | 0.4724 | 1.86 | |||
| UC214-44 | 2-3/4 | 125 | 74.6 | 30 | 30.2 | 44.4 | M8×1 5/16-28UNF | 12 | 46800 | 45000 | 2.06 |
| 214 | 70 | 4.9213 | 2.937 | 1.1811 | 1.189 | 1.748 | 0.4724 | 2.05 | |||
| UC215-47 | 2-15/16 | 130 | 77.8 | 30 | 33.3 | 44.5 | M8×1 5/16-28UNF | 12 | 50800 | 49500 | 2.3 |
| 215 | 75 | 5.5118 | 3.063 | 1.1811 | 1.311 | 1.752 | 0.4724 | 2.21 | |||
| 215-48 | 3 | 2.13 | |||||||||
| UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | M8×1 5/16-28UNF | 14 | 55000 | 54200 | 2.79 |
| UC217-52 | 3-1/4 | 150 | 85.7 | 35 | 34.1 | 51.6 | M8×1 5/16-28UNF | 14 | 64000 | 63800 | 3.6 |
| 217 | 85 | 5.9055 | 3.374 | 1.378 | 1.3425 | 2.0315 | 0.5512 | 3.38 | |||
| UC218-56 | 3-1/2 | 160 | 96 | 37 | 39.7 | 56.3 | M8×1 5/16-28UNF | 14 | 73800 | 71500 | 4.56 |
| 218 | 90 | 6.2992 | 3.7795 | 1.4567 | 1.563 | 2.2165 | 0.5512 | 4.45 | |||
